NGC 1624
Open Cluster with Nebula
aka Collinder 53, OCL 403
RA: 04h40m25.4s Dec: +50°26'49" (Perseus)
Integrated Visual Magnitude: 11.8
Angular Diameter: 1.9'

Minimum requirements to detect: 6-inch scope under dark skies


NGC 1624 is a different little open cluster embedded in a faint nebula that is quite reminiscent of the well known Cocoon nebula.  The cluster itself is a tight grouping of only a very few stars.  The nebula is visible as a faint, round haze.  I wasn't able to find many observations of this object; Walter Scott Houston makes no mention of it and there is no description in Burnham's.  Nevertheless I found this to be an intriguing cluster because of the small number of obvious stars and the that  nebula is relatively easy to detect (much more so than the Gamma Cas nebula, for instance).

Even in my 18-inch the primary stars of this cluster can be counted on the fingers of one hand.  An equilateral triangle of stars lie at the cluster and nebula center.  Two other bright stars lie to the west, pointing at the triangle.  Visually these 5 stars dominate the view.

At 97x I was able to make out the nebula as a very faint haze.  The OIII filter really brought it out, revealing a large, very diffuse, irregularly shaped glow.  The H-Beta helped, but not as much as the OIII.  Higher magnification showed the cluster better, but the best view of the nebula is at low power.

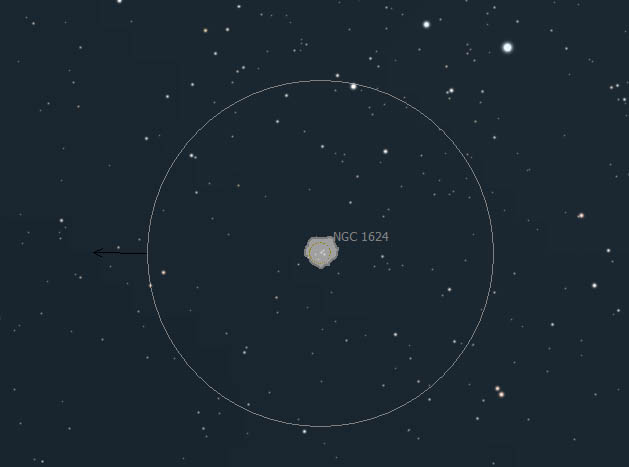

The field in an 6-inch at 50x.  North is down and east is to the right.

Millennium Star Atlas Vol I Chart 75
Sky Atlas 2000 Chart 5
Uranometria 2000 Vol I Chart 40
Herald-Bobroff Astroatlas B-05 C-04
